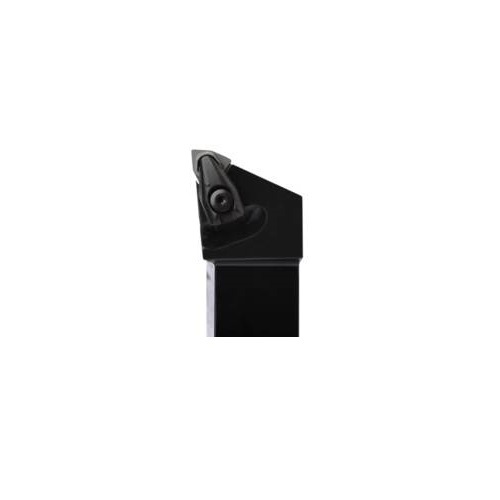

Seco Turning External Toolholder Top Clamp 170 x 35 x 8mm Right 95° W Insert Shape DWLNR3225P08-C

Description

Seco Turning External Toolholder Top Clamp 170 x 35 x 8mm Right 95° W Insert Shape DWLNR3225P08-C

Turning External Toolholder (Top Clamp - L Type - W Insert Shape - C Surface)

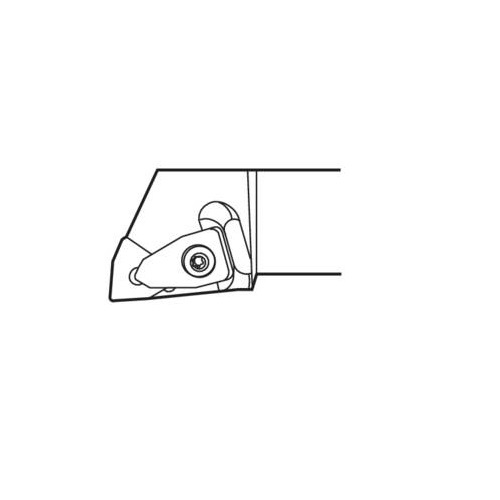

Insert clamping system - top clamp using the center hole.
W insert shape.
L tool type, offset shank with –5° end or side cutting edge.
C surface, qualified back and end. 5” long.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods

Specifications

AIMS SKU A0115065

Brand Seco

Model Number 02598537

Barcode Number 98537025000104

Net Weight (kg) 1.082

Designation DWLNR3225P08-C

Type Turning Toolholder

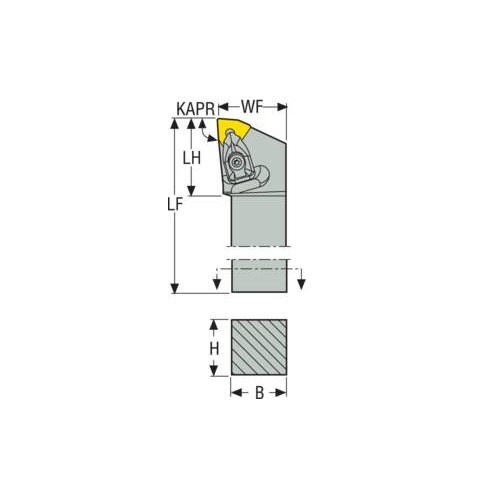

Functional Length (LF) 170mm

Shank Type Square shank

Insert Shape Code (SC) W

Head Length (LH) 35mm

Functional Width (WF) mm 32

Cutting Edge Length (mm) 8

Inclination Angle (LAMS) -6.0 deg

Tool Cutting Edge Angle Code (KAPRC) L

Tool Type L Type

Rake Angle Orthogonal (gamo) -6.0 deg

Insert Clamping System (ICS) Top Clamp

Height Of Tool Holder Shank (H) mm 32

Tool Cutting Edge Angle (KAPR) 95.0 deg

Connection Text Workpiece Side (ctws) WN0804

Shank Width (b) mm 25

Version (internal/external/both) External

Direction Of Cutting (hand) Right

Connection Text Machine Side (CTMS) 3225
