Specifications
- AIMS SKU A0115580
- Brand Seco
- Model Number 00071940
- Barcode Number 71940000000106
- Net Weight (kg) 0.32
- Designation SVVBN-12-3

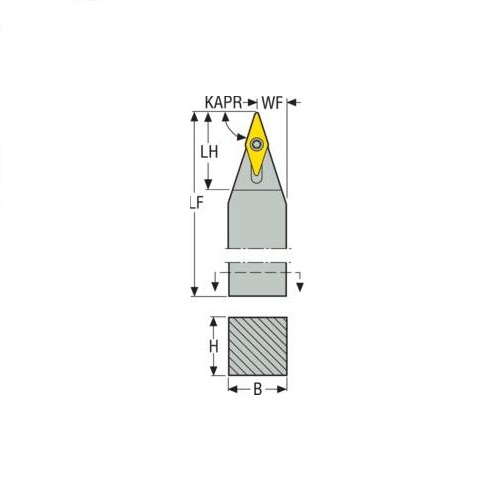

- Functional Length (LF) 114.3mm
- Insert Shape Code (SC) V
- Head Length (LH) mm
- Insert Size Inscribed Circle Diameter (mm) 3
- Functional Width (WF) mm 9.5
- Cutting Edge Length (mm) 3
- Inclination Angle (LAMS) 0.0 deg
- Tool Cutting Edge Angle Code (KAPRC) V
- Tool Type V Type
- Height Of Tool Holder Shank (H) mm 19.1
- Tool Cutting Edge Angle (KAPR) 72.5 deg
- Connection Text Workpiece Side (ctws) VB1604
- Shank Width (b) mm 19.1
- Direction Of Cutting (hand) Neutral
- Connection Text Machine Side (CTMS) 19.05
- Rake Angle Axial (gamp) 0.0 deg
- Rake Angle Orthogonal (gamo) 0.0 deg
- Type Turning Toolholder
- Shank Type Square shank
- Version (internal/external/both) External

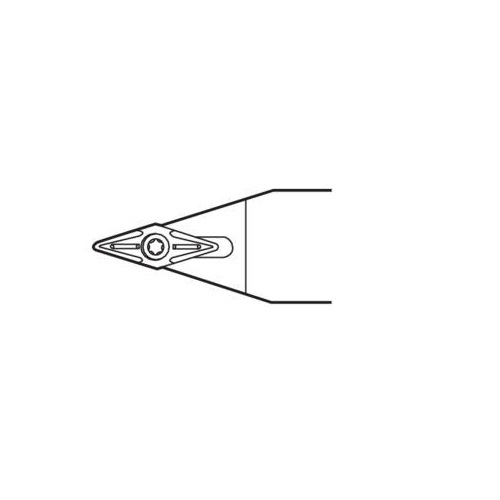

- Insert Clamping System (ICS) Screw Lock
SKU: A0115580

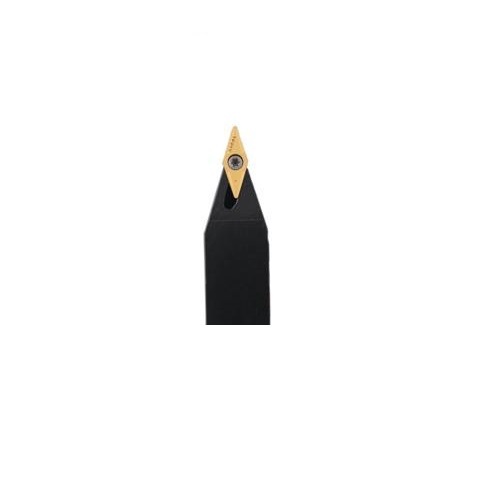

Seco Turning External Toolholder Screw Lock 114.3 x 9.5 x 3mm Neutral 72.5° V Insert Shape SVVBN-12-3
Screw Lock - V Type - V Insert Shape - 3mm I.C.
$224.59
SAVE $44.91 (17%)
