Specifications
- AIMS SKU A0115562
- Brand Seco
- Model Number 00071930
- Barcode Number 71930000000107
- Net Weight (kg) 0.36

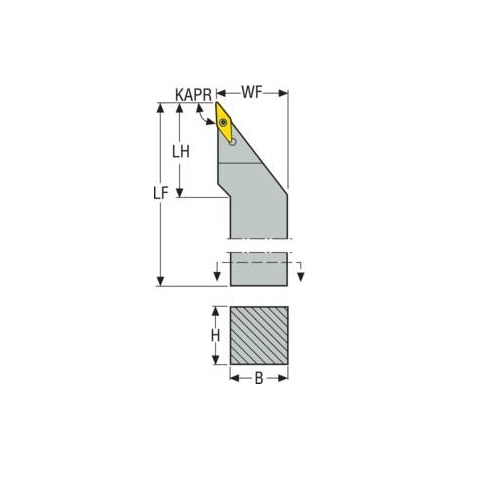

- Designation SVLBR-12-3
- Functional Length (LF) 114.3mm
- Insert Shape Code (SC) V
- Insert Size Inscribed Circle Diameter (mm) 3
- Functional Width (WF) mm 22.2
- Cutting Edge Length (mm) 3
- Inclination Angle (LAMS) 0.0 deg
- Tool Cutting Edge Angle Code (KAPRC) L
- Tool Type L Type
- Height Of Tool Holder Shank (H) mm 19.1
- Tool Cutting Edge Angle (KAPR) 95.0 deg
- Connection Text Workpiece Side (ctws) VB1604
- Shank Width (b) mm 19.1
- Direction Of Cutting (hand) Right
- Connection Text Machine Side (CTMS) 19.05
- Rake Angle Axial (gamp) 0.0 deg
- Rake Angle Orthogonal (gamo) 0.0 deg
- Type Turning Toolholder
- Shank Type Square shank
- Version (internal/external/both) External
- Insert Clamping System (ICS) Screw Lock
SKU: A0115562

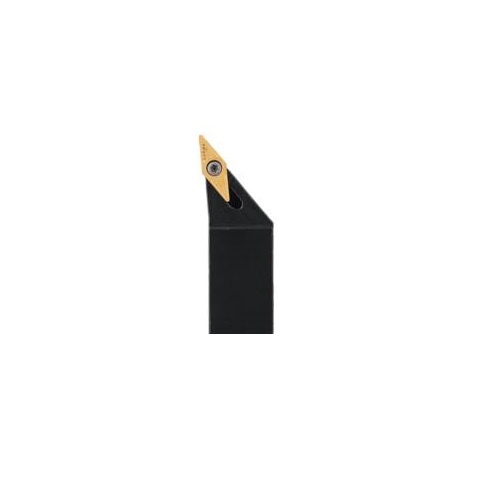

Seco Turning External Toolholder Screw Lock 114.3 x 22.2 x 3mm Right 95° V Insert Shape SVLBR-12-3
Screw Lock - L Type - 3mm I.C.
$224.59
SAVE $44.91 (17%)
