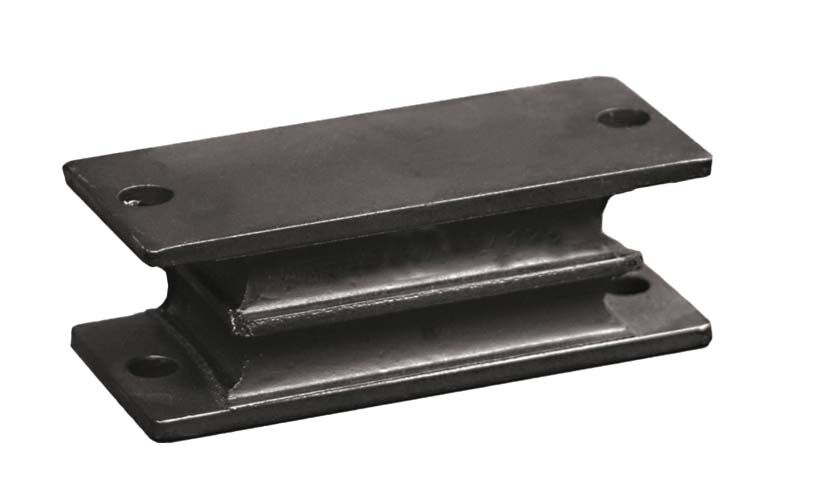

Mackay Plate Mount - Vibration Isolator

  • Plate Mount - Plate isolator
  • Vibration isolator.

About Mackay Plate Isolator

  • Where you require an isolator of straight forward design to provide an uncomplicated solution to controlling vibration and shock , the range of Mackay Plate Mountings provide the answer.
  • These isolators are designed to protect equipment and machinery from damaging vibration and shock and have an excellent capacity for energy control.
  • Applications: Printing presses, Road rollers, Vibratory

Specifications

  • AIMS SKU A0210235
  • Brand Mackay
  • Model Number MA3132250
  • Barcode Number 9313699056021

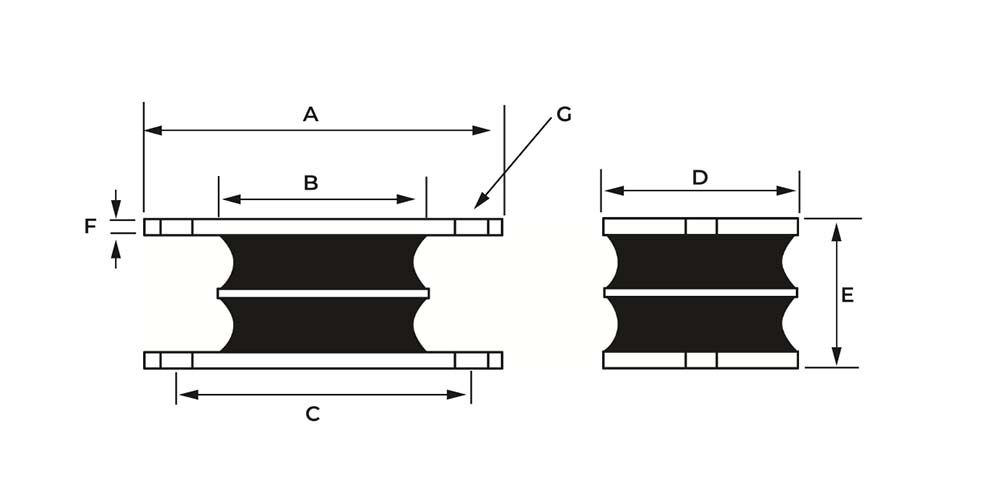

  • Dimension (d) mm 57
  • Compression Load 85 - 260 kg
  • Shear Load 22 - 66 kg
  • Compression DEF (mm) 1 -3
  • Shear DEF (mm) 4 - 12
  • Dimension (A) mm 108
  • Dimension (B) mm 63.5
  • Dimension (C) mm 89
  • Dimension (E) mm 43
  • Dimension (F) mm 5
  • Dimension (G) mm 10.3
  • Type Plate Mount
SKU: A0210235

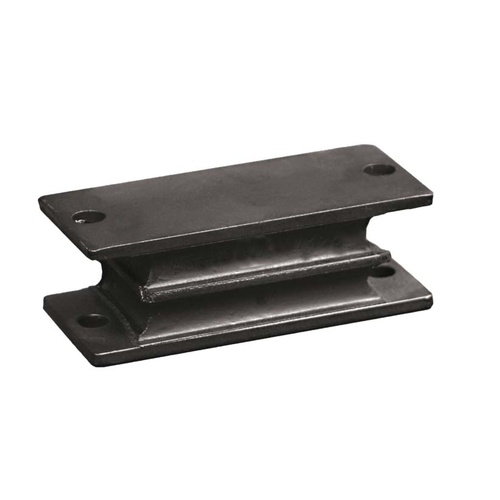

Mackay MA3132250 Plate Mount 85 - 260kg (Compression) x 22 - 66kg (Shear)

Mackay Plate Mount, 50 Duro - Vibration Isolator

$154.15
