Specifications

AIMS SKU A0171044
Brand Mackay
Model Number M154006
Barcode Number 9313699046299
Weight (kg) 0.038

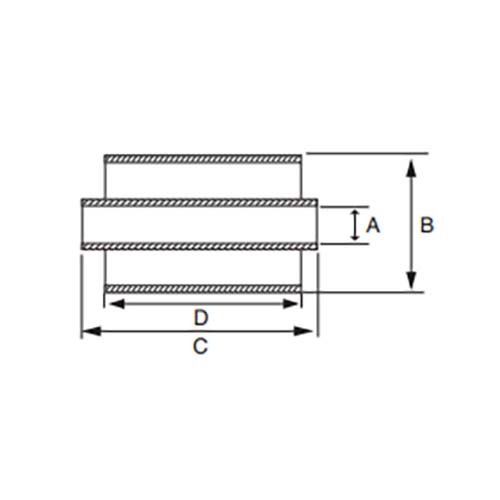

Nominal Dimension A (mm) 10
Nominal Dimensions (D x C x B) mm 30 x 32 x 22

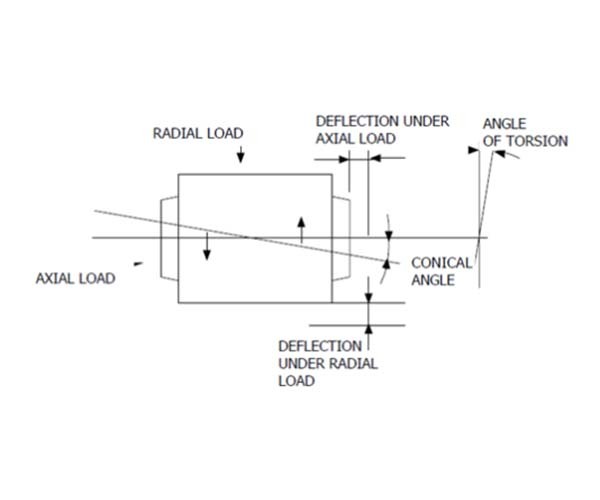

Torsion MT Max (Nm) 9
Angle Torsion Max (Deg) 10
Axial Load Max (N) 600
Axial Load Max (mm) 0.9
Radial Load FR Max (N) 2250
Radial Load SR Max (mm) 0.25

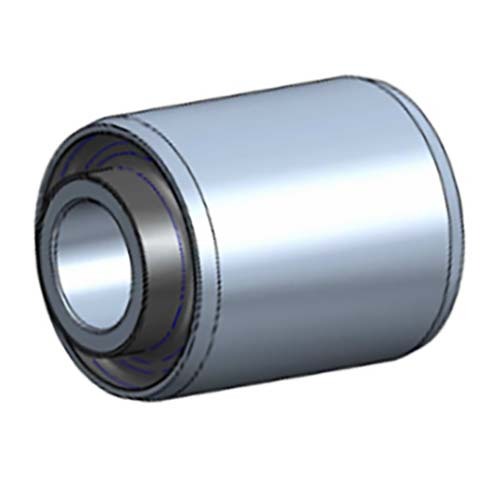

• Type Flexible Bearing
• Material Steel / Rubber
