Specifications

AIMS SKU A0014911
Brand Sutton Tools
Model Number T3940300
Barcode Number 9311963004433
Size (metric) M3 x 0.5

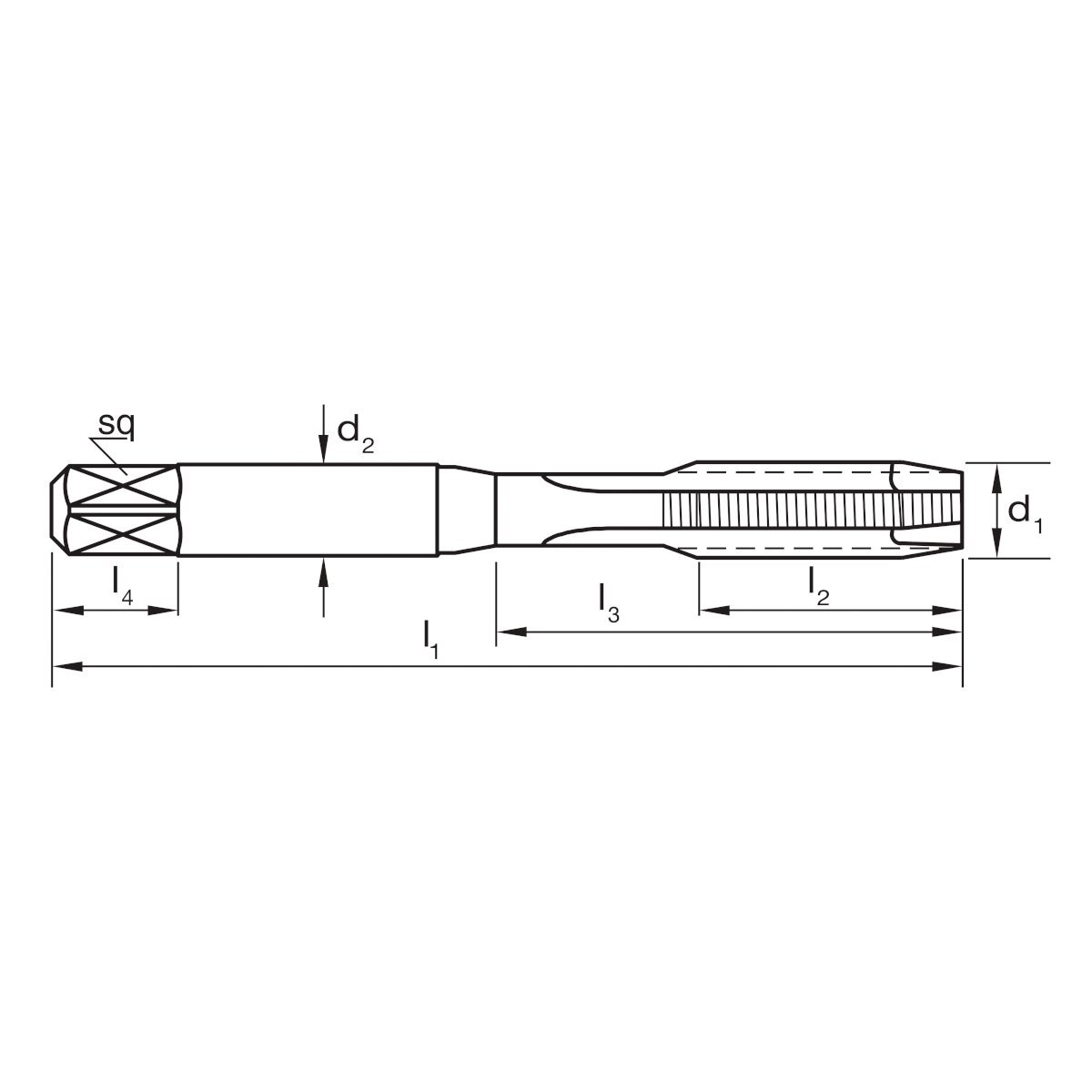

L1 (mm) 48
Pitch (mm) 0.5
L2 (mm) 11
L3 (mm) 15
z 3
L4 (mm) 5
Sq 2.5
d1 M3
Drill Diameter 2.5
D2 3.15

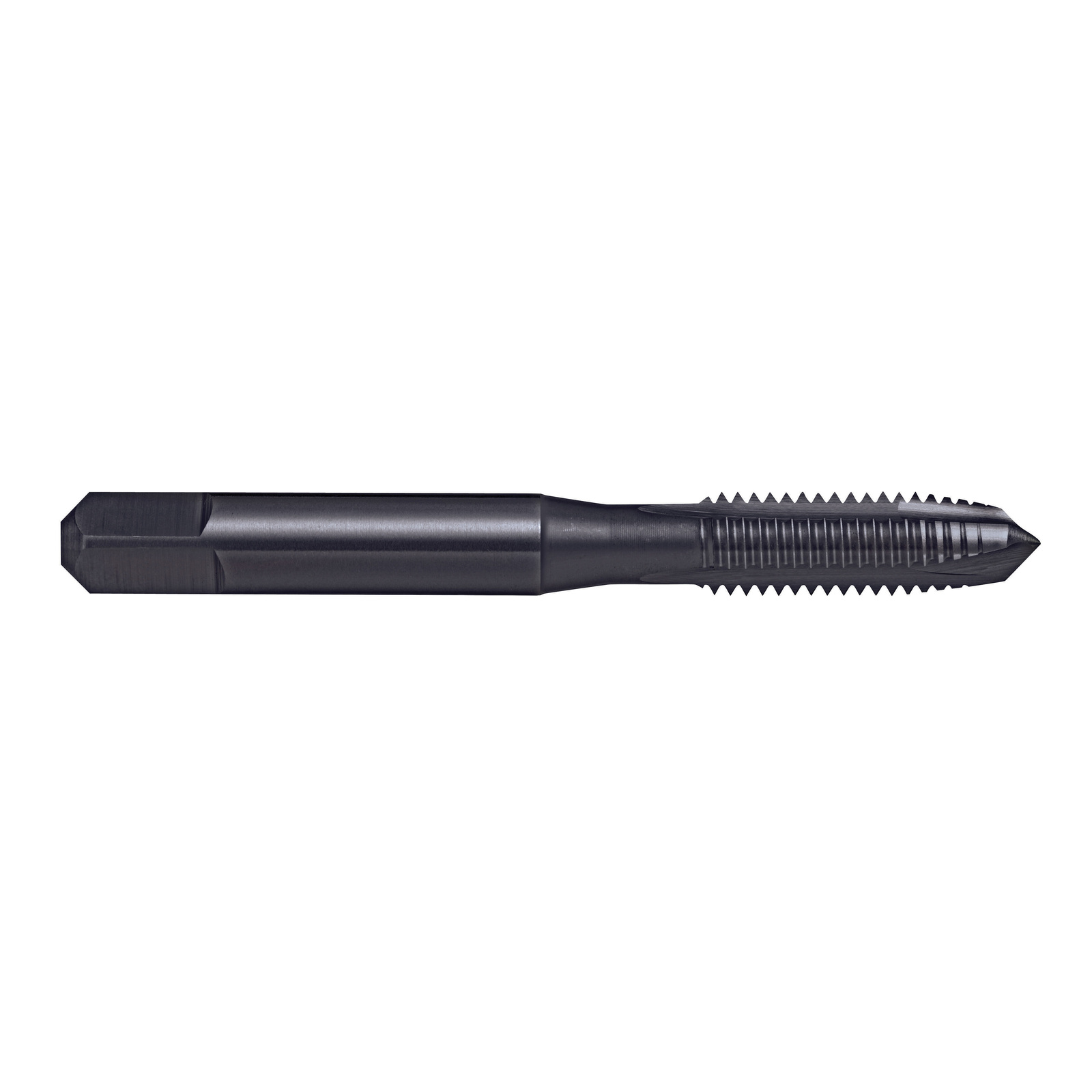

• Type Spiral Point (Gun) Tap
• Designation N
• System of Measurement Metric
• Thread Form M
• Material HSSE V3
• Finish Steam Oxide (Blu)
• Lead Form B / 4.5 x P
• Max Cut Depth 3 x D
• Tap Type Spiral Point (Gun)
• Chamfer Intermediate
• Limit & Nut Tolerance ISO 2 / 6H
