Seco 11.6 x 5.07mm MK1500 10.4° Chamfer Mill Turbo 12 Milling Insert XOMX120408TR-M12,MK1500 Pack of 10

Carbide CVD (M12) Chamfer Mill Turbo 12 Milling Insert

  • MK1500 grade, carbide CVD.
  • CVD (Chemical Vapour Deposition).
  • CVD-coated grades are suitable for wear resistance in demanding applications with high feed rates and intermediate to high cutting speed.

MK1500 Grade

  • CVD-coated grade based on Duratomic™ coating. Basic grade for milling cast iron and nodular cast iron, with or without coolant.
  • Ti (C, N) – Al2O3.

About Chamfer Turbo 12 2-Cutting-Edge-Single-Sided Inserts

  • Available in Arbor, CombimasterTM and Seco-Capto connections.
  • 30°, 45°, 60°, and 75° setting angles.
  • Max. depth of cut 31 mm (1.22 inch) with the 75° milling cutter.
  • XO.X12 inserts with 2 cutting edges.
  • Front chamfering.

About Seco Chamfer Mills

  • Seco chamfer mills offer the same free cutting action as our standard milling cutters, providing strong and reliable performance.
  • With options for through-coolant and 30-degree, 45-degree, 60-degree and 75-degree setting angles.
  • Our family of chamfer mills is available with Combimaster™, Arbor and Seco-Capto connections.

Specifications

  • AIMS SKU A0118886
  • Brand Seco
  • Model Number 02566325
  • Barcode Number 66325025001006
  • Type Chamfer Turbo 12 Milling Insert
  • Designation XOMX120408TR-M12 MK1500
  • Grade MK1500
  • Grade Type Carbide CVD
  • Cutting Edge Count (CEDC) 2
  • Insert Hand (IH) Right

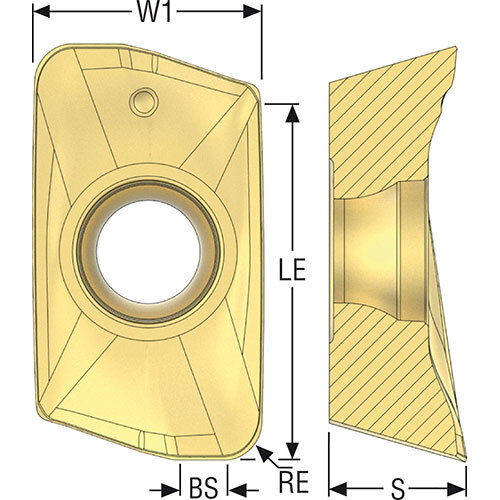

  • Cutting Edge Effective Length (LE) mm 11.6
  • Insert Thickness (S) mm 5.07
  • Cutting Rake Deg 10.4 deg
  • Corner Radius (RE) mm 0.8
  • Insert Seat Size Code (SSC) XOMX12..
  • Wiper Edge Length (bs) Mm 1.6
  • Clearance Angle Major) Deg 15.0 deg
  • Insert Width (w1) Mm 8.2
SKU: A0118886

Seco 11.6 x 5.07mm MK1500 10.4° Chamfer Mill Turbo 12 Milling Insert XOMX120408TR-M12,MK1500 Pack of 10

Carbide CVD (M12) Chamfer Mill Turbo 12 Milling Insert

$333.66
RRP $369.60
SAVE $35.94 (10%)
