Specifications

AIMS SKU A0112950
Brand Seco
Model Number 02827880
Barcode Number 27880028001008

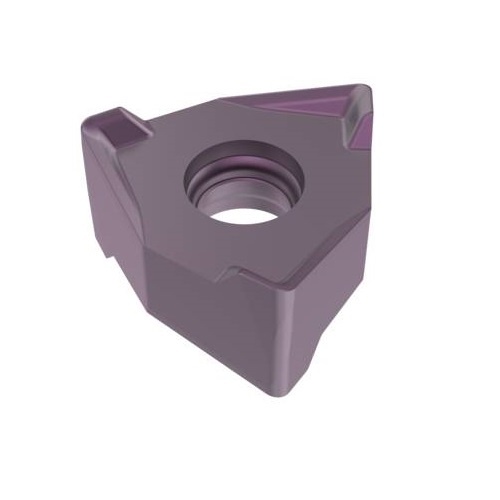

Designation XNEX080608TR-M13 MK2050

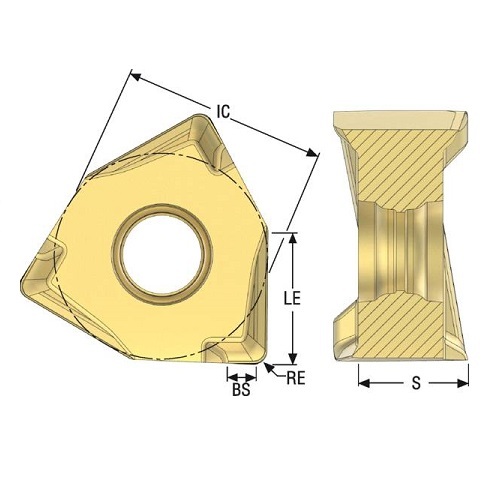

Wiper Edge Length (BS) X Corner Radius (RE) mm 1.3 x 0.8

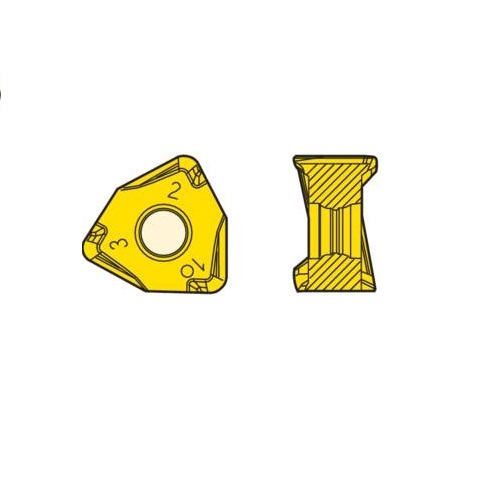

Cutting Edge Count (CEDC) 6
Insert Included Angle (EPSR) 88.3 deg
Inscribed Circle Diameter (IC) 12.48
Insert Hand (IH) Right
Theoretical Cutting Edge Length (L) 7.5
Cutting Edge Effective Length (LE) mm 7.5
Insert Thickness (S) mm 6.45
Cutting Rake Deg 22°
• Type Milling Cutter Insert
• Grade Type Carbide PVD
