Description

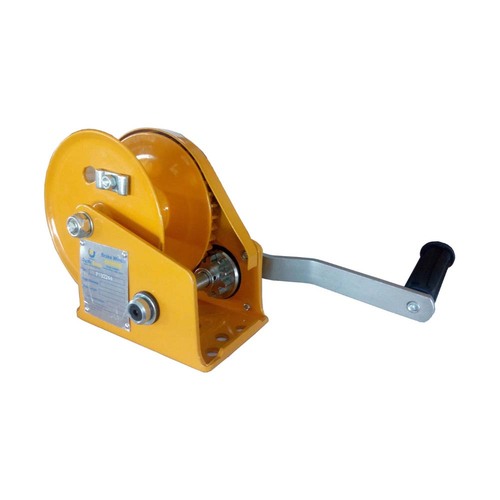

Specifications ·Model: BHW125N ·Pulling Capacity: 545 kg ·Lifting Capacity:270 ·Hand Force Required:18.4 kg ·Standard Finish: Powder-coated ·Gear Ratio: 4.2 : 1 ·Handle Length: 208 mm ·Hub Diameter:Ø48 mm ·Cable Diameter: Ø5.0 mm x 23 m ·Net. Weight: 3.7 ·Noiseless: YES Descriptions ·Cost-effective solution for a variety of applications ·Can be used for both pulling and lifting purposes ·Comply with the Australian Standards AS1418.2 when correctly fitted with the approved wire rope and fittings. Features ·Positive Weston-style brake will hold the load in any position ·Compact, lightweight, and rugged construction ·Mechanical components enclosed for protection and safety ·Powder-coated to provide corrosion resistance to metallic parts made of steel, zinc, and aluminium alloys or brass. ·Rope to drum fixing clamp provided ·Heat-treated gears ·Strong removable handles ·High precision construction minimises gear noise. **Note: Flat Strap can be put on the BHW125N. It is designed to hold 23m of 4.8mm wire rope.**
